Nordgetreide

    • Fuel Type Natural Gas
    • Application Food Industry
    • kW Production 835
    • Location Falkenhagen, Germany

    About This Project

    Cereals are known to be a great supplier of energy to our muscles. But, to turn grains into crispy flakes it not only takes a lot of know-how, but one thing in particular: energy. The German cereal producer "Nordgetreide," now produces their own sustainable electricity and heat onsite.

    In its location in Falkenhagen, a small town about 45 miles west of Berlin, the company recently installed a 2G avus 800 cogeneration system. With an electrical output rated at 835 kW the CHP from 2G's avus series, covers almost the entire electrical demand of the production facility. When running in full load, the system produces enough electrical energy to supply about 1230 four-person households with a year's worth of electricity. The recovered thermal energy is used to generate 1322 pounds of steam per hour that is utilized in the manufacturing process. The avus recovers 3,364,372 BTU/hr of heat. That way Nordgetreide was able to save expenses for an additional boiler to prepare hot water.

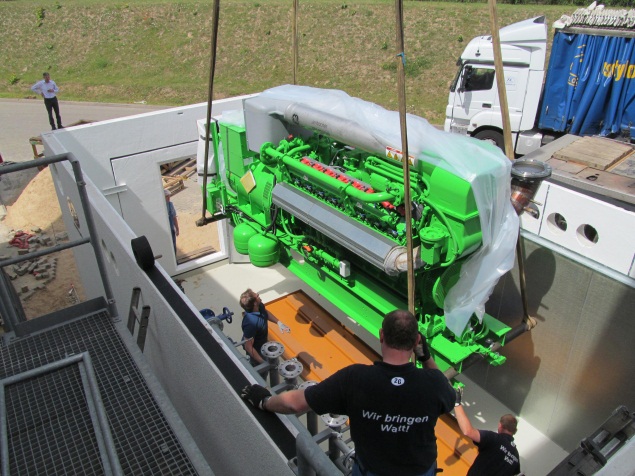

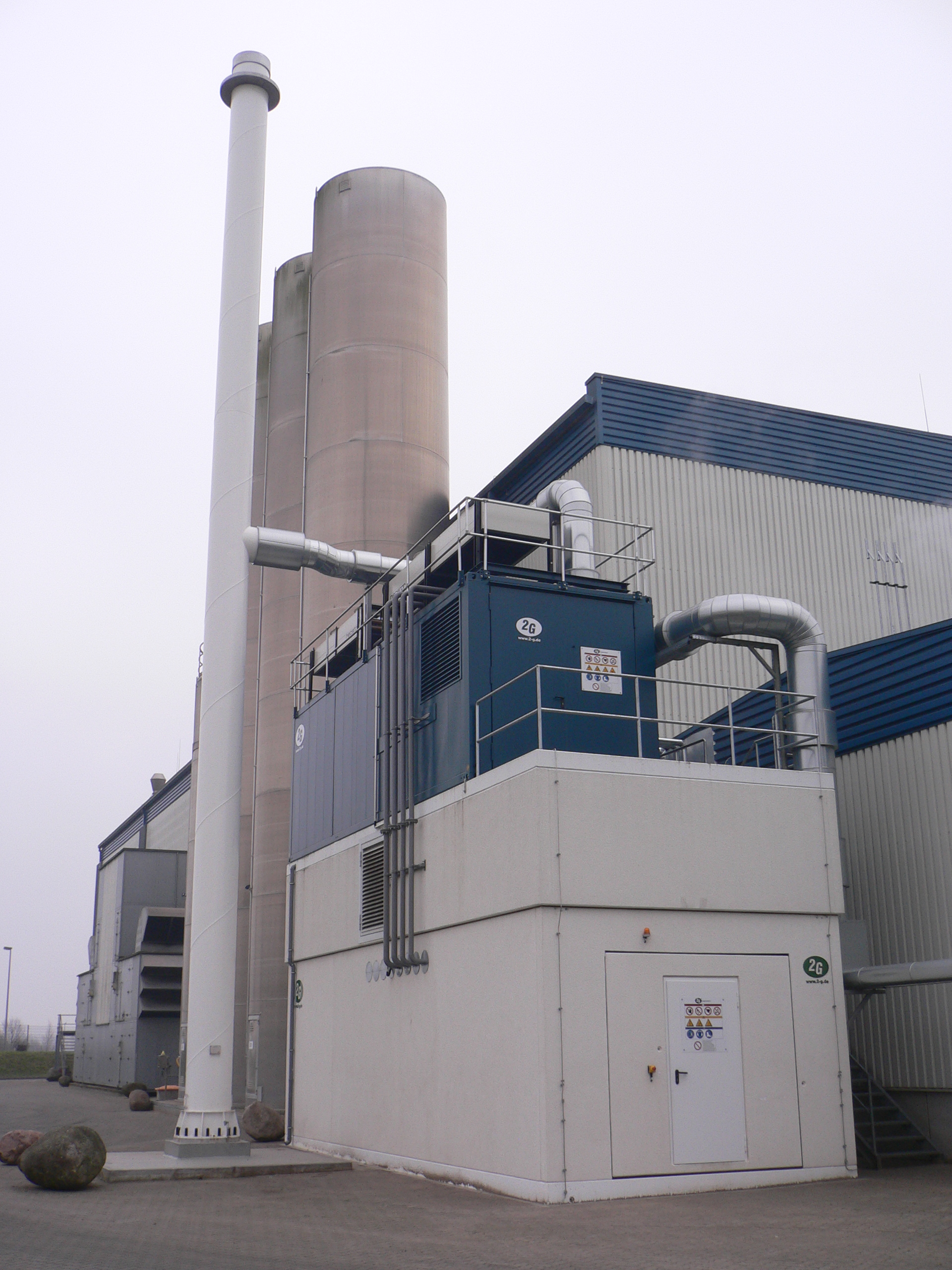

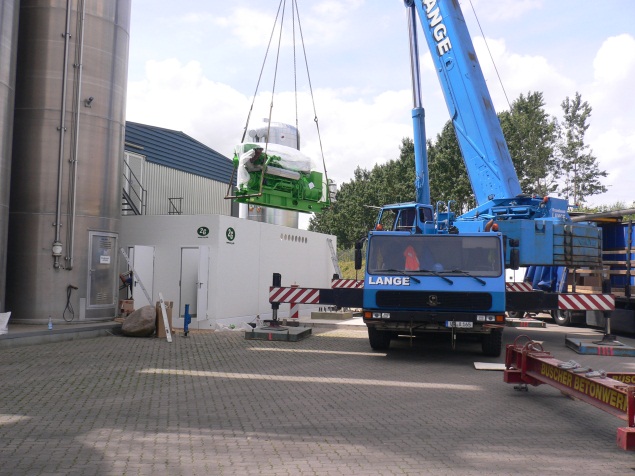

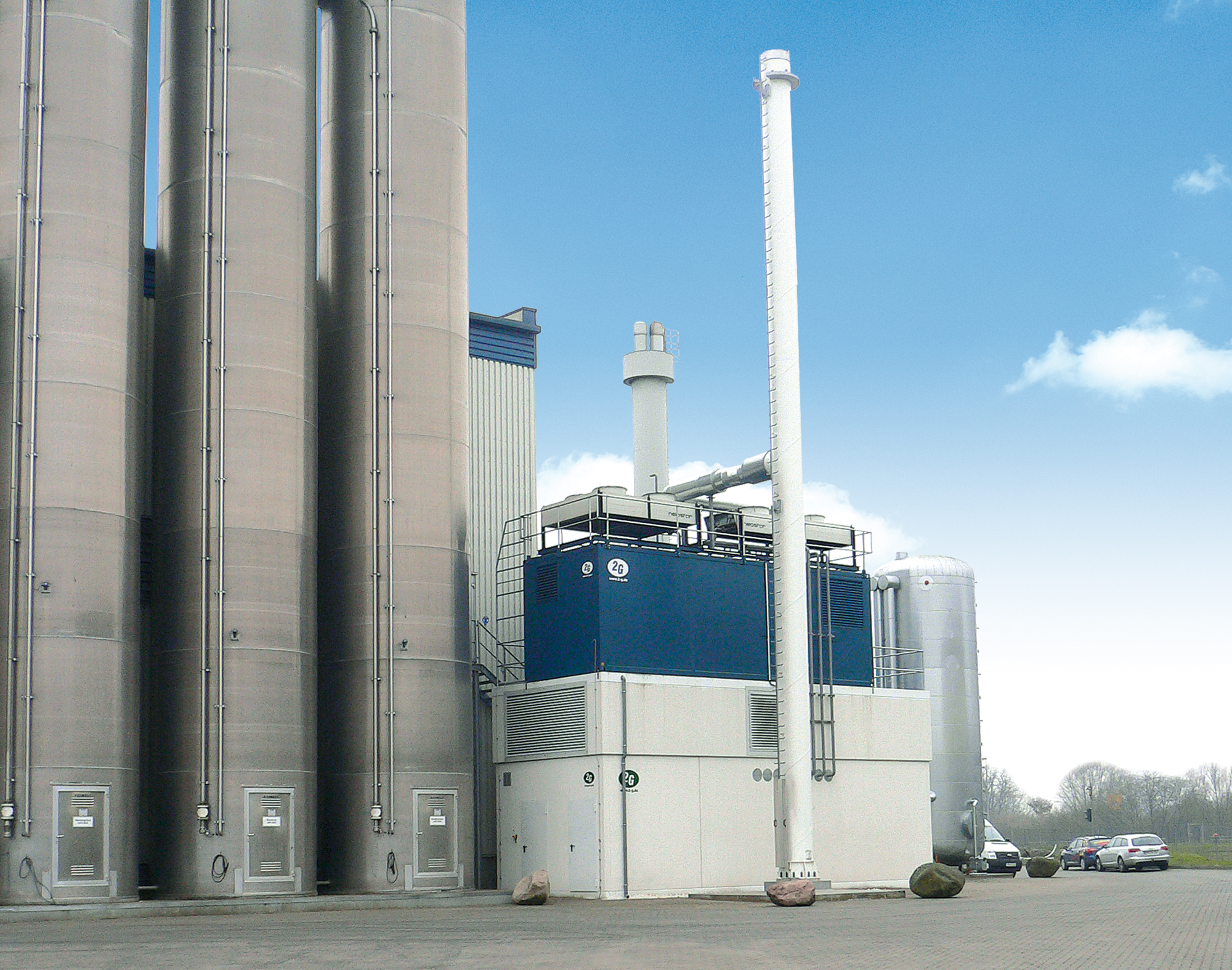

    One specialty about this project that needs to be highlighted is the installation of this unit. To reach the highest sound attenuation, the avus is housed in a concrete enclosure. The steam generator is packaged in a container that is installed on top of the concrete enclosure. Installing it this way not only saved space and time, it also eliminated the need to build a separate machine house.



    Additional Details

    • Total Electrical Power
      835kW
    • Module
      avus 800a
    • Configuration
      Container Module
    • Extras
      Concrete Enclosure, Steam Generation
    Download .PDF




    Project Gallery 4 photos

    • Nordgetreide
    • Nordgetreide
    • Nordgetreide
    • Nordgetreide
