    g-box
    Small, Profitable & Quiet
    g-box 60 kW

    The g-box is 2G’s profitable small power plant and has an electrical output of 60 kW. The connection-ready module includes a control cabinet with a PLC controller. While the power unit works extremely efficiently, the low noise output makes it suitable for various applications like hotels, offices, or residential buildings.

    • Connection-ready for easy integration
    • Compact design requires minimal space for installation
    • Super-silent and fully enclosed compact module (max 55 dB(A) at a distance of 3 ft)
    • Very economical – highest thermal efficiencies through condensing technology
    • Completely water-cooled – no need for costly installation of air ducts
    • High availability, reliability, and low-maintenance
    • Island mode/black start capable
    • Runs on Natural Gas and now Propane as well

    Request a Quote  |  Download g-box Brochure

    avus 500plus
    Built for Big Tasks
    avus 855 - 1,248 kW

    The avus is a highly-efficient 2G power plant for high electrical power consumption used in larger industrial projects or for supplying microgrids.

    The modular built systems include all components and are easy to install.

    • Interconnection of multiple units allows for higher electrical output. A Master Control system enables synchronization and load sharing of up to 5 modules.
    • Efficient running mode and operation times due to excellent engine quality.

    Request a Quote  | The Propane brochure

    Technical Details

    Propane

    Type Output Efficiency
      Electrical Thermal Electrical Thermal Total
    avus 1000c 855 kW 2,555 MBTU 40.30 % 46.40 % 86.70 %
    avus 1500c 822 kW 3,306 MBTU 39.80 % 46.90 % 86.70 %
    avus 2000c 945 kW 3,852 MBTU 39.20 % 46.80 % 86.00 %
    avus 1000a 848 kW 3,876 MBTU 38.00 % 50.89 % 88.89 %
    avus 1000b 997 kW 4,080 MBTU 40.90 % 49.00 % 89.90 %
    avus 1500b 1,248 kW 4,998 MBTU 40.90 % 48.00 % 89.00 %

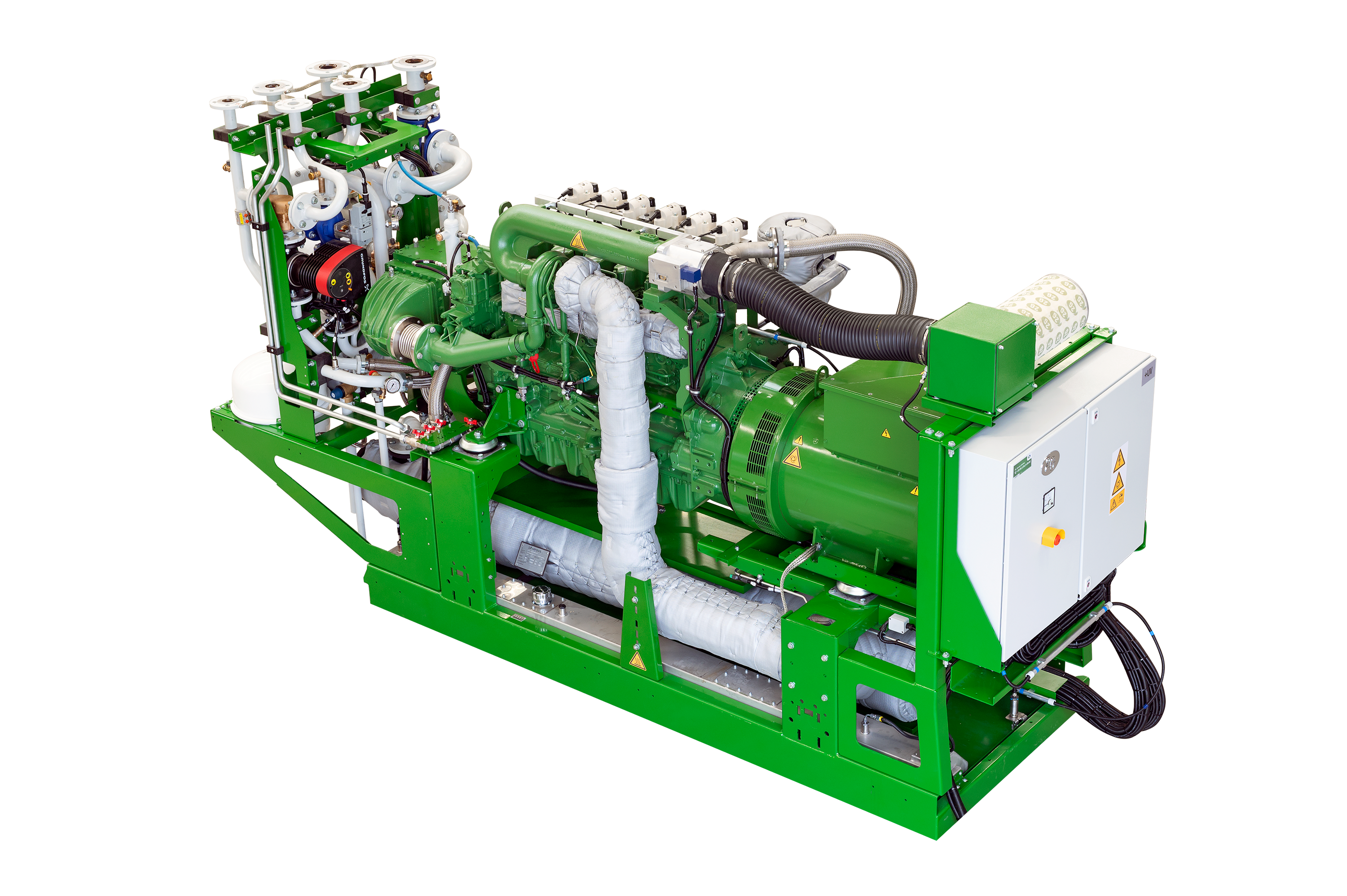

    agenitor 406
    Evolution in Efficiency
    agenitor 100 to 580 kW

    The agenitor by 2G is the result of intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.

    • Highly efficient power plant with an optimized gas engine – and therefore lower fuel costs
    • Modular design facilitates installation in hard-to-reach places
    • Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components
    • Resilient and low-maintenance
    • Available as a twin pack configuration with two modules per container for twice the power

    Request a Quote  |  Download the propane brochure

    Technical Details


    Propane

    Type Output Efficiency
      Electrical Thermal Electrical Thermal Total
    agenitor 404 100 kW 419 MBTU 36.30 % 44.50 % 80.90 %
    agenitor 406 150 kW 631 MBTU 37.2 % 45.9 % 83.10 %
    agenitor 408 215 kW 887 MBTU 37.50 % 45.30 % 82.70 %
    agenitor 412 330 kW 1,426 MBTU 37.70 % 44.50 % 82.20 %
    agenitor 420 580 kW 2,327 MBTU 38.30 % 45.10 % 83.40 %

    Containerized Solutions

    2G power plants can be installed in various ways – depending on local conditions and the requirements for sound insulation. They can therefore be incorporated in existing buildings or heating systems or can be set up separately in a container or engine room. With the appropriate sound insulation package, noise emission can be as low as 35 dB (A) at a distance of 10 m.

    Compact Container

    Compact container Sizes Available



    19.7 ft x 8 ft x 9.5 ft



    Acoustic Emissions



    Standard: 65 dB (A)
    Super silent: up to 55 dB (A)

    Standard Container

    basiccontainer Sizes Available



    22.9 ft x 9.8 ft x 9.8 ft
    31.5 ft x 9.8 ft x 9.8 ft

    Acoustic Emissions



    Standard: 65 dB (A)
    Super silent: up to 52 dB (A)

    Highline Container

    high-line Sizes Available



    29.5 ft x 9.8 ft x 12.1 ft
    34.4 ft x 9.8 ft x 12.1 ft
    39.4 ft x 9.8 ft x 12.1 ft
    39.4 ft x 14.1 ft x 17.5 ft

    Acoustic Emissions



    Standard: 65 dB (A)
    Super silent: up to 45 dB (A)

    Twinpack Container

    twinpack_sm Sizes Available



    42.7 ft x 9.8 ft x 9.8 ft
    49.2 ft x 9.8 ft x 9.8 ft



    Acoustic Emissions



    Standard: 65 dB (A)
    Super silent: up to 52 dB (A)

    Heavy Container

    heavycontainer

    Sizes Available



    39.4 ft x 9.8 ft x 9.8 ft
    49.2 ft x 9.8 ft x 9.8 ft
    55.8 ft x 9.8 ft x 11.2 ft

    Acoustic Emissions



    Standard: 65 dB (A)

    Super Silent: up to 52 dB (A)

    Outdoor Sound Capsule

    outdoorcapsule Sizes Available



    Depending on product

    Acoustic Emissions



    Standard: 65 dB (A)

    Sound Capsule

    soundcapsulewhitespace Sizes Available



    Depending on product

    Acoustic Emissions



    Standard: 65 dB (A)

    Propane Case Study

    2G_Site_RinCon_PR-Container copy

    Rincon Beach Resort - Anasco, Puerto Rico

    View Project Profile

    This beach resort in Añasco, Puerto Rico, uses a 2G patruus 400 with a generating capacity of 240 kW electrical and 367 kW thermal. This unit generates heat and power for the resort, using propane as the fuel source. This unit is fully containerized with Island Mode for built-in resiliency and continuity during a blackout or natural disaster (hurricane) and rated to withstand tropical winds and seismic activity.
