agenitor80 to 450 kW
The agenitor by 2G is the result of intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.
- Highly efficient power plant with optimized gas engine – and therefore lower fuel costs
- Modular design facilitates installation in hard to reach places
- Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components
- Resilient and low-maintenance
- Available as a twinpack configuration with two modules per container for twice the power
Request a Quote | Download agenitor biogas brochure
Technical Details
Biogas
| Type | Output | Efficiency | |||
| electrical | thermal | electrical | thermal | total | |
| agenitor 404a | 80 kW | 341 MBTU | 35.2 % | 44.1 % | 79.3 % |
| agenitor 404b | 100 kW | 406 MBTU | 37.0 % | 44.0 % | 81.0 % |
| agenitor 404c | 160 kW | 580 MBTU | 39.7 % | 42.0 % | 81.7 % |
| agenitor 406 | 250 kW | 887 MBTU | 41.3 % | 42.9 % | 84.2 % |
| agenitor 408 | 360 kW | 1,306 MBTU | 40.9 % | 43.6 % | 84.4 % |
| agenitor 412 | 450 kW | 1,555 MBTU | 40.2 % | 40.8 % | 81.0 % |

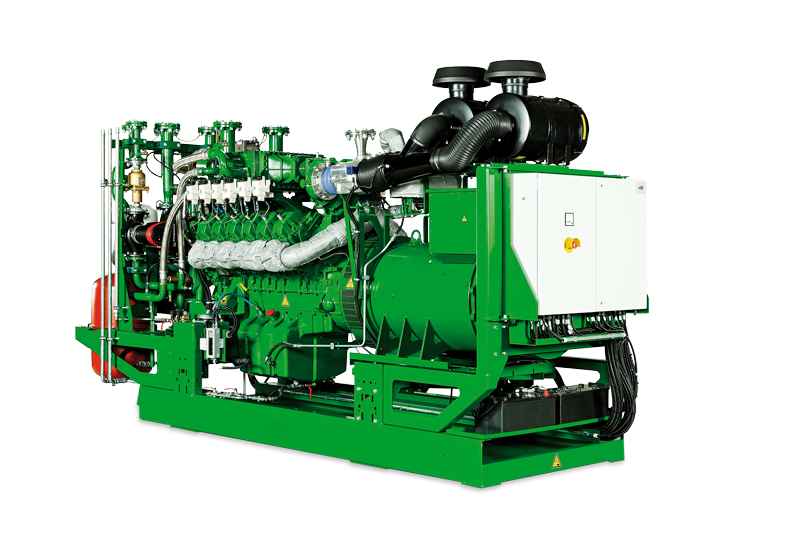

avus550 to 2,500 kW
The avus is a highly efficient 2G power plant for high electric power consumption (above 500 kW) which is used in larger industrial projects or for supplying micro grids. The modular built systems include all components and are easy to install.
- Interconnection of multiples units allows for higher electrical output. A Master Control system enables synchronization and load sharing to up to 5 modules.
- Efficient running mode and operating times due to excellent engine quality
Request a Quote | Download avus biogas brochure
Technical Details
Biogas
| Type | Output | Efficiency | |||
| electrical | thermal | electrical | thermal | total | |
| avus 500 plus | 550 kW | 2,002 MBTU | 40.6% | 43.3 % | 83.9 % |
| avus 600c | 600 kW | 2,190 MBTU | 40.4 % | 43.1 % | 83.5 % |
| avus 800c | 800 kW | 2,859 MBTU | 40.7 % | 42.7 % | 83.4 % |
| avus 1200c | 1,200 kW | 3,900 MBTU | 42.8 % | 40.7 % | 83.5 % |
| avus 1200d | 1,145 kW | 3,979 MBTU | 41.5 % | 42.3 % | 83.8 % |
| avus 1500c | 1,560 kW | 5,374 MBTU | 41.7 % | 42.1 % | 83.8 % |
| avus 2000c | 2,000 kW | 6,817 MBTU | 42.3 % | 42.2 % | 84.5 % |
Containerized Solutions
2G power plants can be installed in various ways – depending on local conditions and the requirements for sound insulation. They can therefore be incorporated in existing buildings or heating systems or can be set up separately in a container or engine room. With the appropriate sound insulation package, noise emission can be as low as 35 dB (A) at a distance of 10 m.
Compact container
Sizes Available
19.7 ft x 8 ft x 9.5 ft
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 55 dB (A)
Standard container
Sizes Available
22.9 ft x 9.8 ft x 9.8 ft
31.5 ft x 9.8 ft x 9.8 ft
Standard: 65 dB (A)
Super silent: up to 52 dB (A)

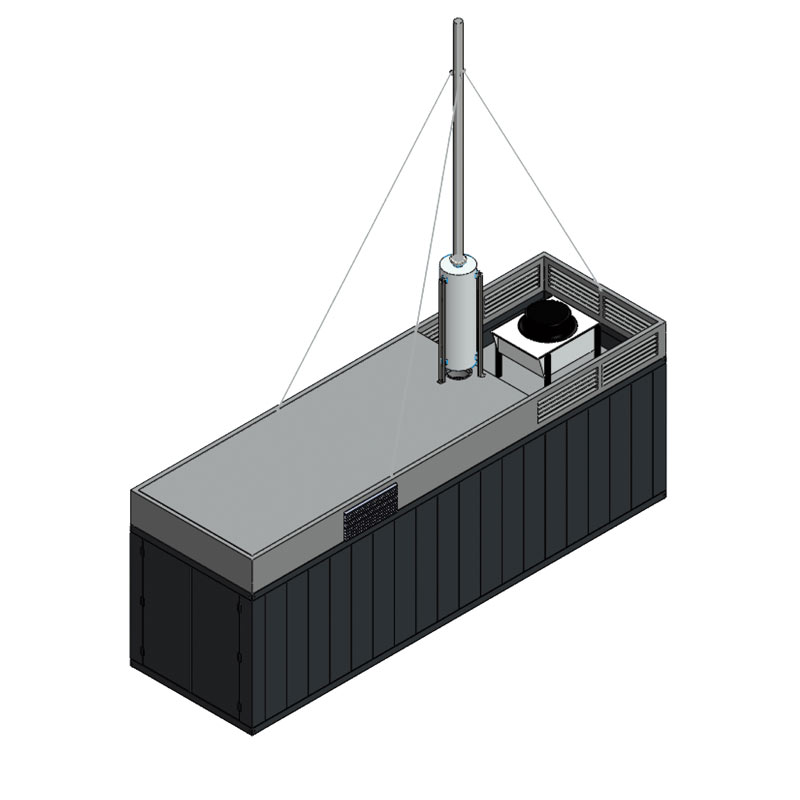

High Line container
Sizes Available
29.5 ft x 9.8 ft x 12.1 ft
34.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 14.1 ft x 17.5 ft
Standard: 65 dB (A)
Super silent: up to 45 dB (A)

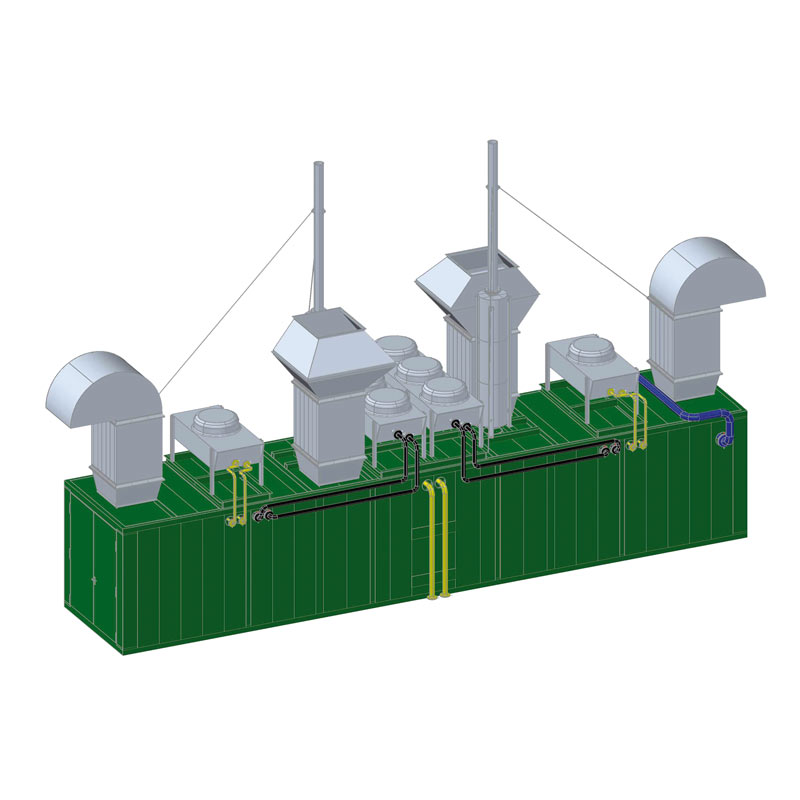

Container Twin Pack
Sizes Available
42.7 ft x 9.8 ft x 9.8 ft
49.2 ft x 9.8 ft x 9.8 ft
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 52 dB (A)
Outdoor Sound capsule
Sizes Available
Depending on product
Acoustic Emissions
Standard: 65 dB (A)
Heavy
Sizes Available
39.4 ft x 9.8 ft x 9.8 ft
49.2 ft x 9.8 ft x 9.8 ft
55.8 ft x 9.8 ft x 11.2 ft
Standard: 65 dB (A)
Super Silent: up to 52 dB (A)
Sound Capsule
Sizes Available
Depending on product
Acoustic Emissions
Standard: 65 dB (A)
